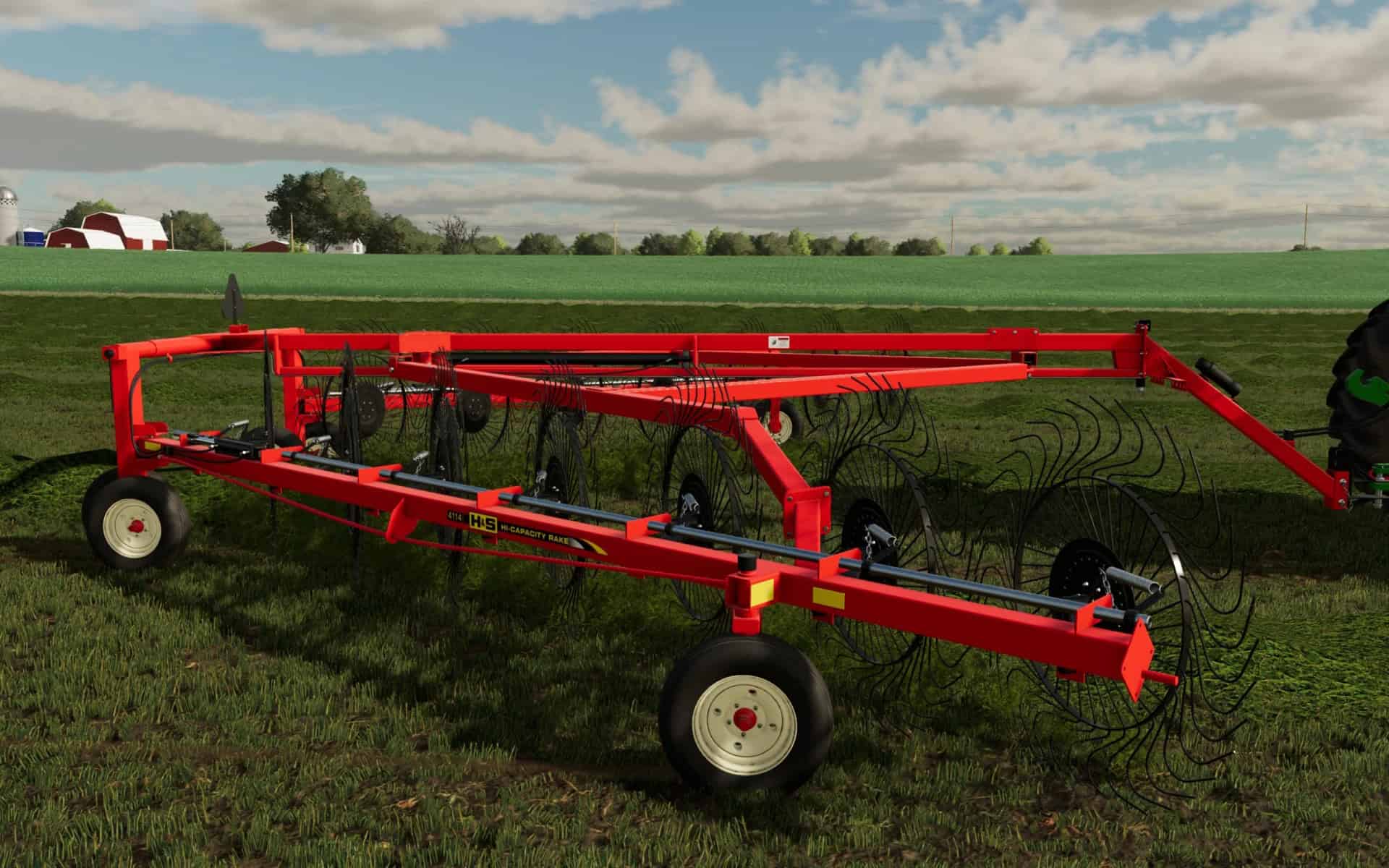

H&S HC4114 Hay Rake v1.0
The H&S HC4114 HI-CAPACITY wheel rake has the raking wheels positioned ahead of the rake arms, main frame beams and transport wheels.
With a high and wide rear frame, there are no hang-up points or restrictions when raking the heaviest of hay crops.
Rake opens and closes hydraulically, rake wheels are lowered and raised hydraulically, and the rake wheels float independently.
Limited oscillating offset tandem transport wheels assure a smooth, level ride, even over irrigation tracks.
A single point rake wheel down pressure adjustment on each rake beam allows the operator to fine-tune the rake to fit varying conditions.
An adjustable brake band on top of the front spindle keeps the front gauge wheels from spinning in rough conditions.
Independent articulated rake beams have the flexibility to flex 3′ up or 3′ down.
Rear limited oscillating offset tandem transport wheels ensure a smooth, level ride, even over irrigation tracks.
Raking width up to 28′.
This rake is special to me given I have real-world experience pulling one as a young man. I hope you enjoy it as much as I enjoyed bringing it to life.
